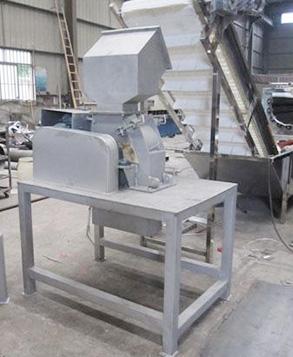

Brief introduction of stainless steel squirrel cage crusher
Time：2021-05-02 07:54 Browse：277
The squirrel cage crusher is a special equipment for coal destruction. Its working principle is that the materials entering the cage are broken step by step by four squirrel cage impact wheels which are empty together and roll in reverse at high speed. Its characteristic is that it has a good mixing effect on materials while crushing. Besides destroying coal, other brittle materials can also be destroyed. PS series squirrel cage crushers are mainly PS10, PS20 and PS40. The technology of hardfacing and wear resistance is adopted for the striking wheel disc and the striking rod, which greatly prolongs its service life.
2、 Parameter table of squirrel cage crusher
|
主要技術參數 |
PS10II |
PS20II |
PS30II |
|
最大消費率(T/H) |
10 |
20 |
40 |
|
大/小擊輪轉速(R/Min) |
610/690 |
840/950 |
630/700 |
|
大擊輪電機型號/功率(KW) |
Y160L-4/15 |
Y225M-6/30 |
Y315S-6/75 |
|
小擊輪電機型號/功率(KW) |
Y160M-4/11 |
Y180L-4/22 |
Y250-4/55 |
|
最大進料粒度(MM) |
25 |
50 |
50 |
|
出料粒度 |
-3毫米≥80%，5～8毫米≤ 6%，最大粒度≤8毫米 |
||
|
全機重量(KG) |
1550 |
1770 |
4400 |
|
外形尺寸(長×寬×高,毫米) |
1910×1170×1060 |
1990×1380×1200 |
2440×1800×1440 |
